Virtuoso Universal Server Demonstration

Knowledge Graph Generation from Disparate Data Sources

Using a combination of the OpenLink Structure Data Sniffer (OSDS) and OpenLink AI Layer (OPAL), a knowledge graph can be immediately generated from disparate sources without hand-written code.

From a WebPage

Example: https://www.boozallen.com

---

From Email Files

This example demonstrates adding email content and extracted entities to our knowledge graph.

---

From a Legal Document

This example demonstrates adding a Legal Document to our knowledge graph.

---

From Call Transcripts

This example demonstrates converting call transcript files to RDF turtle, and also executing entity extraction.

---

From a DoD Report

This example demonstrates converting a report to RDF turtle, and adding it to our knowledge graph.

AI & LLM Integration

Leverage the OpenLink AI Layer (OPAL) to couple Large Language Models with your data landscape for intelligent actions and natural language querying.

OPAL: The OpenLink AI Layer

OPAL is an LLM-powered Smart Agent for invoking Actions via Functions that operate on data accessible via HTTP, ODBC, or JDBC. It is compliant with both MCP (Model Context Protocol) and A2A (Agent-2-Agent Protocol) and is immediately usable with OpenAI, Anthropic, Grok, Mistral, Gemini, and other LLM services. The /chat and /assist-metal interfaces provide powerful ways to interact with and develop AI assistants.

Webpage & Support Demos

Here’s a screencast demonstrating an OPAL-deployed AI Agent/Assistant embedded in an HTML page and accessed via a Chatbot interface. In this example, a Customer Support Agent handles a request for an evaluation license.

In this screencast example, the same Customer Support Agent handles a product support-related interaction.

---

MCP Servers

OPAL’s core functionality—along with the AI Agents/Assistants built using it—is also directly accessible as MCP (Model Context Protocol) tools via the OPAL MCP server. As a Virtuoso add-on, OPAL additionally exposes a broad range of functionality, including: database administration, fine-grained access controls, WebDAV filesystem management, multi-model database management, and query processing (SQL, SPARQL, GraphQL).

Querying Attached PostgreSQL tables from Virtuoso via MCP and creating a Dashboard with Claude

Using OPAL to query Virtuoso via MCP Inspector + SSE

---

A2A Example

This screencast demonstrates an A2A instigated Agentic workflow that includes interactions with an AI Agent/Assistant created and deployed using OPAL.

---

Langchain

Data Virtualization & Federation

Unify disparate data sources by creating virtual and physical knowledge graphs from structured data like CSVs and federated relational databases.

Virtual + Physical KGs from CSV Documents

Dataset

This synthetic dataset includes: Transaction Data, Customer Data, Account Data, and Fraud Labels.

Script Breakdown: Creating a Knowledge Graph from 80 CSV Documents

Convert customer and transaction data into Virtual and Physical RDF triples using R2RML (Wizard and Linked Data View Generator).

Load Data into Virtual and Physical SQL Tables

Install Custom Stored Procedure for quickly mapping multiple CSV documents to a virtual SQL Table:

-- Install ATTACH_FROM_CSV_DIR
DROP PROCEDURE file_dirlist_full;
CREATE PROCEDURE file_dirlist_full (IN a ANY)
    {
        DECLARE _inx integer;
        DECLARE F VARCHAR;
        DECLARE L INT;
        F := file_dirlist(a,1);
        L := length(F);
        _inx := 0;
        While(_inx < L){
            DECLARE v any;
            F[_inx] := concat(a,'/',F[_inx]);
            _inx := _inx + 1;
        }
        return F;
    };

DROP PROCEDURE attach_from_csv_dir;
CREATE PROCEDURE attach_from_csv_dir (IN tb VARCHAR, IN dir ANY, in delimiter VARCHAR, in newline VARCHAR, in esc VARCHAR, in skip_rows int, in pkey_columns any := null)
    {
        declare f VARCHAR;
        f:= attach_from_csv(tb,file_dirlist_full(dir),delimiter,newline,esc,skip_rows,pkey_columns);
        return F;
    };

Create Virtual and Physical SQL Tables of CSV Data

SPARQL CLEAR GRAPH  <urn:demo.openlinksw.com:fint>;

DROP TABLE demo.fint.account IF EXISTS;
DROP TABLE demo.fint.customer IF EXISTS;
DROP TABLE demo.fint.transaction IF EXISTS;
DROP TABLE demo.fint.fraud_label IF EXISTS;

DROP TABLE demo.fint.account_physical IF EXISTS;
DROP TABLE demo.fint.customer_physical IF EXISTS;
DROP TABLE demo.fint.transaction_physical IF EXISTS;
DROP TABLE demo.fint.fraud_label_physical IF EXISTS;

ATTACH_FROM_CSV_DIR('demo.fint.account','fint/synthetic_data/accounts',',','\n',null,1,VECTOR(1));
ATTACH_FROM_CSV_DIR('demo.fint.customer','fint/synthetic_data/customers',',','\n',null,1,VECTOR(1));
ATTACH_FROM_CSV_DIR('demo.fint.transaction','fint/synthetic_data/transactions',',','\n',null,1,VECTOR(1));
ATTACH_FROM_CSV_DIR('demo.fint.fraud_label','fint/synthetic_data/fraud_labels',',','\n',null,1,VECTOR(1));

GRANT SELECT ON demo.fint.account to SPARQL_SELECT;
GRANT SELECT ON demo.fint.customer to SPARQL_SELECT;
GRANT SELECT ON demo.fint.transaction to SPARQL_SELECT;
GRANT SELECT ON demo.fint.fraud_label to SPARQL_SELECT;

-- Optional Create SQL Tables Containing Physical Data
CREATE TABLE demo.fint.account_physical AS SELECT * FROM demo.fint.account WITH DATA;
CREATE TABLE demo.fint.customer_physical AS SELECT * FROM demo.fint.customer WITH DATA;
CREATE TABLE demo.fint.transaction_physical AS SELECT * FROM demo.fint.transaction WITH DATA;
CREATE TABLE demo.fint.fraud_label_physical AS SELECT * FROM demo.fint.fraud_label WITH DATA;

GRANT SELECT ON demo.fint.account_physical to SPARQL_SELECT;
GRANT SELECT ON demo.fint.customer_physical to SPARQL_SELECT;
GRANT SELECT ON demo.fint.transaction_physical to SPARQL_SELECT;
GRANT SELECT ON demo.fint.fraud_label_physical to SPARQL_SELECT;

Confirm Virtual and Physical Table Creation by Chatting with our Data

We can use OPAL to query the generated table using natural language. A configuration file provides the DDL (Data Definition Language), which can be used to generate queries, provide hard-coded queries to execute, and deliver answers.

---

Generate Virtual and Physical Linked Data Views

Option 1: R2RML Wizard (for users who already have an R2RML Script)

Option 2: Linked Data View Generator (for users who want an automatically generated mapping and ontology)

Option 3: SQL Script

Chatting with our Knowledge Graph to confirm its creation

---

Federated Queries

Creating a Knowledge Graph from Federated SQL RDBMS Tables (local, SQLServer, MySQL)

Tables can be attached via Conductor interface, or programmatically using the `ATTACH_TABLE()` command.

Storing the query as a SQL View

DROP TABLE demo.sql_federation.data;
CREATE VIEW demo.sql_federation.data AS
(
    SELECT
        A.CustomerID,
        A.CompanyName,
        B.OrderID,
        C.EmployeeID,
        C.LastName,
        C.FirstName
    FROM
        "sqlserver"."northwind"."customers" A
    NATURAL JOIN
        "mysql5"."northwind"."orders" B
    NATURAL JOIN
        "Demo"."demo"."employees" C
);
GRANT SELECT ON demo.sql_federation.data TO SPARQL_SELECT;

Creating a Virtual Linked Data View

Federated SPARQL Queries (SPARQL-FED)

List the Awards, past partners, and past/current spouses of Robert Downey Jr.

Querying & Third-Party Tool Integration

Connect seamlessly with industry-standard tools via ODBC, JDBC, and HTTP protocols for comprehensive data analysis and visualization workflows.

Querying Virtuoso

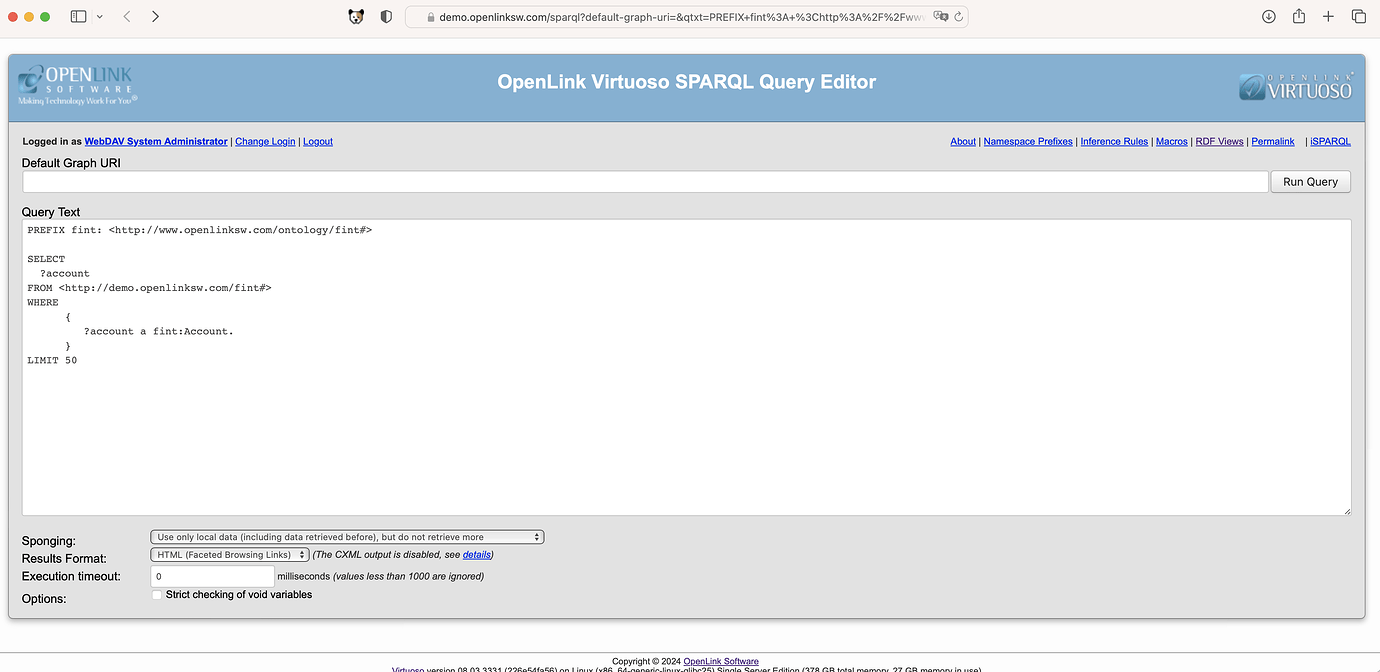

SPARQL Query Editor

---

SPASQL QB (Query Builder)

SPARQL-within-SQL Example (Blue Links = Globally Resolvable)

SQL Example (Green Links = Locally Resolvable)

---

Example Queries Against the Physical Dataset

1. List All Accounts and their Primary + Secondary Account Holders

2. List All Accounts and their Balances

List All Accounts With a Primary or Secondary Account Holder with a Risk Score over 80.

---

Using Third-Party Tools

Any ODBC-, JDBC-, or HTTP-compliant application can connect to Virtuoso.

NetworkX (HTTP, ODBC, JDBC)

In this example, we demonstrate how NetworkX can be used in Python to operate on data retrieved from Virtuoso using HTTP(S), ODBC, or JDBC connections. Virtuoso serves as the backend triplestore where RDF data is stored, and this data can be accessed programmatically from Python using SPARQL queries over HTTP(S) or through database connections via ODBC or JDBC. Once the data is retrieved, it is processed and converted into graph structures compatible with NetworkX, enabling users to perform complex network analysis, graph algorithms, and visualizations within the Python environment. This integration provides a powerful means of bridging semantic web data with Python’s analytical capabilities.

Excel

Data from Virtuoso can be queried from Excel using the Virtuoso ODBC Driver, allowing users to seamlessly access and work with semantic data directly within the familiar Excel environment. By establishing an ODBC connection, Excel can interact with the Virtuoso triplestore, enabling users to import, filter, and analyze RDF-based data without leaving the spreadsheet interface. This integration is especially useful for business analysts and data professionals who rely on Excel for reporting and data manipulation, as it brings the power of linked data into everyday workflows.

Tableau (ODBC or JDBC)

Data from Virtuoso can be queried by Tableau through the use of either an ODBC or JDBC driver, enabling direct integration between the two systems. By connecting Tableau to Virtuoso in this way, users can visualize and analyze RDF-based data stored in Virtuoso using Tableau’s powerful data exploration and dashboarding capabilities. This setup allows for real-time or scheduled access to semantic data, making it easier for business users and analysts to derive insights from complex datasets without needing to export or manually transform the data.

Neo4j

Virtuoso content can be queried from Neo4j by leveraging Virtuoso’s JDBC Driver, which facilitates seamless connectivity between the two platforms. By using this driver, data stored within the Virtuoso triplestore can be accessed and integrated into Neo4j workflows, allowing for efficient querying and analysis across heterogeneous data sources. This approach enables developers and data analysts to bridge RDF-based semantic data in Virtuoso with property graph data in Neo4j, enhancing the ability to perform complex queries, data federation, and knowledge graph enrichment within a unified environment.

Example HTTP(s) consumer utilizing GraphQL

In this example, we demonstrate how GraphQL can be used in conjunction with an HTML-based Single Page Application (SPA) to operate on data retrieved from Virtuoso using SPARQL. The SPA serves as a dynamic front-end interface, while GraphQL acts as an intermediary layer that abstracts and simplifies access to the underlying RDF data. Data is initially queried from the Virtuoso triplestore using SPARQL, then exposed through a GraphQL API, which the SPA consumes to render interactive and responsive user experiences. This approach combines the flexibility of SPARQL with the developer-friendly querying capabilities of GraphQL, making it easier to build rich, data-driven web applications on top of semantic data.

Enterprise Security & Access Control

Implement fine-grained, attribute-based access controls (ABAC) with the Virtuoso Authentication Layer (VAL). This solution uses logic, expressed as entity relationships, to manage identity, authorization, and restrictions for any protected resource.

Attribute-based Access Control (ABAC) Example

In this example, access control is used to constrain access to a specific named graph such that, when users haven’t logged in via successful authentication, query solutions scoped to the graph return nothing. In other words, only authenticated users will receive query solutions from the protected named graph.

Authentication Demo

When logged in as demo, we can access the Virtual Named Graph after authenticating due to `SELECT` permissions having been granted in the setup script. Without having granted `SELECT` permissions on the underlying table, access will be denied:

SPARQL Query Editor Example

cURL Example

Script used to implement ACL above

-- Cleanup
SPARQL CLEAR GRAPH <urn:fint:private>;
SPARQL
DELETE WHERE
     {
          GRAPH <http://demo.openlinksw.com/acl/graph/rules/http%3A%2F%2Fwww.openlinksw.com%2Fontology%2Facl%23DefaultRealm>
               {
                    <urn:fint:private:rule>  ?p ?o
               }
     } ;

-- Make Named Graph Private
DB.DBA.RDF_GRAPH_GROUP_INS ('http://www.openlinksw.com/schemas/virtrdf#PrivateGraphs', 'urn:fint:private');

-- Add an ACL
SPARQL
PREFIX  oplacl:  <http://www.openlinksw.com/ontology/acl#>
PREFIX     acl:  <http://www.w3.org/ns/auth/acl#>
INSERT INTO GRAPH <http://demo.openlinksw.com/acl/graph/rules/http%3A%2F%2Fwww.openlinksw.com%2Fontology%2Facl%23DefaultRealm>
     {
          <urn:fint:private:rule>  a  acl:Authorization ;
                                   foaf:maker  <#dhm> ;
                         oplacl:hasAccessMode  oplacl:Read ;
                              acl:accessTo  <urn:fint:private> ;
                                   acl:agent  <http://demo.openlinksw.com/dataspace/person/demo#this>;
                              oplacl:hasScope  oplacl:PrivateGraphs ;
                              oplacl:hasRealm  oplacl:DefaultRealm .
     };

Performance, Scale, & Loading

Virtuoso is proven at enterprise scale with industry-leading benchmarks and massive data loading capabilities.

Benchmarks

---

Loading

---

Public Instance Analysis

Reasoning & Inference

Leverage built-in RDFS & OWL reasoning or create custom inference rules with SPIN and Magic Sets to enable sophisticated knowledge discovery.

Built-In Reasoning and Inference (RDFS, OWL)

---

Custom Reasoning and Inference (SPIN)
